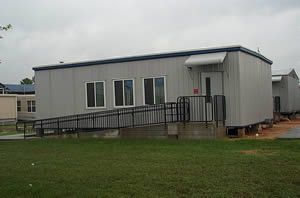

FL PERC - September 2003
Picture of FL Control Classroom.
FL Control Classroom - September 2003

Florida Performance Enhancement Relocatable Classrooms
Orlando, Florida

According to previous research conducted by FSEC, it is estimated that Florida has approximately 25,000 relocatable classrooms to date (FSEC-CR-951-97). At latest count, Orange County Public Schools possesses 3,702 relocatable classrooms in their district of 166 schools. The design and specification process for the FL PERC experiment was similar to that New York although some further modifications were made based on the data collected and information learned from the previous experience. Specifications were further modified for climatical differences, which prompted equipment and insulation changes. The Orange County Public School's Planning and Standards Committee worked closely with FSEC in implementing changes to the typical relocatable classroom that they use in this district. Special attention was made to the lighting layout to ensure optimal distribution. Also, all relocatable classrooms in Orange County are Type IV construction. Type IV construction means all structural members are of non-combustible materials. A building with a metal structure created concerns for ensuring that attention was given to the envelope specifications given the thermal bridging inevitable with steel studs. Another improvement that resulted from the NY project was a "factory friendly" integration of the skylights into the modular construction process. This is explained in the "Lesson Learned" section under the characteristic titled Skylight well.

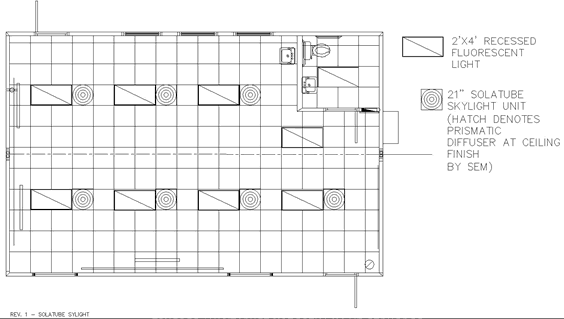

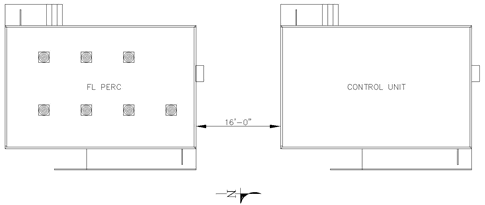

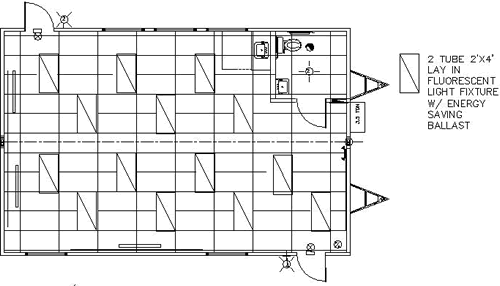

The FL PERC is located at Shingle Creek Elementary School in Orlando, FL where the entire campus is composed of relocatable classrooms. The FL PERC was built by Resun Leasing and South East Modular, in Orlando and Leesburg, FL respectively. Dimensionally, it is a 24’-0” x 36’-0” classroom with a bathroom totaling 864 sq. feet (click here for a view of floor plan 1 and here for a view of floor plan 2). The control classroom was intended to be built by the same manufacturer (South East Modular) but due to scheduling conflicts, it was built by United Modular. However, the base construction is nearly identical from each manufacturer. Both classrooms are occupied and are logging data daily. This testing started October 2003 with data collection beginning in November. The PERC is located sixteen feet south of the control unit (see classroom layout with respect to each other). Measured data shows an overall savings of about 81% were achieved over a year of data collection

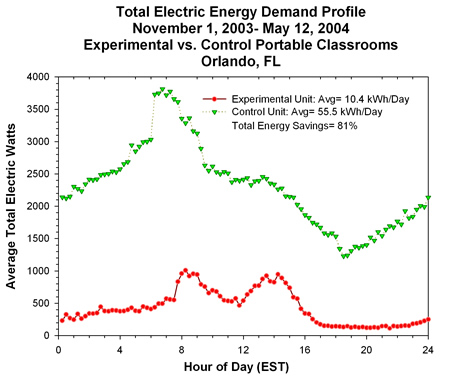

Graph of Total Electric Energy Demand.

Picture of Info Monitor Logo.
FSEC monitored energy performance in both classrooms. All data was downloaded daily to FSEC via modem. Data summaries can be accessed online at the InfoMonitors web site. Detailed data queries and graphs can also be generated through FSEC's WebGet database.
Picture of Weather Logo.

Construction efficiency related differences between the two FL classrooms are listed in the table below. The results of testing are described below.

NASEO Side-by-Side Study of FL PERC
Specifications of Standard and Energy Efficient Construction
Characteristic Standard Relocatable PERC

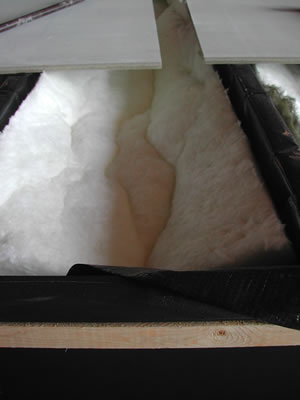

Floor Insulation R-14 unfaced

R-14 unfaced Formaldehyde Free

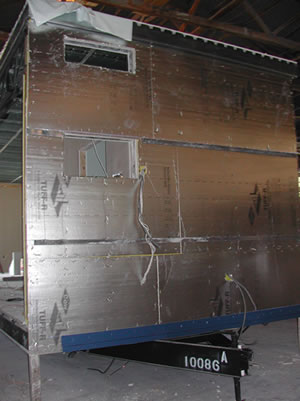

Wall Insulation R-11 faced
R-14 unfaced Formaldehyde Free insulation w/ 1/2" Dens Glass  with ¾" polyisocyanurate foam insulation board
Exterior Door HM pressed steel KD (knock down) CECO with solid core R=2.44 HM pressed steel KD (knock down) CECO with polystyrene core R= 14.8
Ceiling Insulation R-19 faced R-30 Icynene spray foam insulation @ roof deck, Video clip
Roof Standard dark roof; 0.45 mm black  EPDM over ½" Densdeck Reflective roof; 0.45 mm white EPDM over 5/8" Densdeck

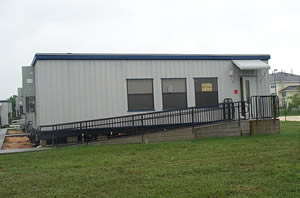

Windows  1/8" non-tempered bronze tint glass(U=1.03, SHGC=0.84, Vt=0.77) Low-E Argon gas filled, vinyl framed by Ellison with Solarban 60 glass(U= 0.28, SHGC - 0.39, Vt=0.71)
Lights 1,420 Total Installed Wattage 984 Total Installed Wattage

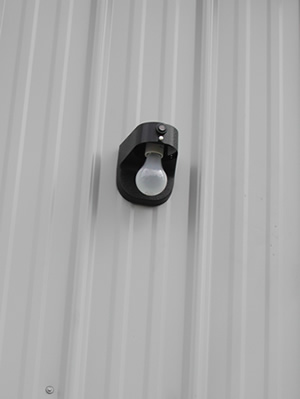

Outdoor Light 60 Watt incandescent Manually controlled 15 Watt CPL, photosensor controlled

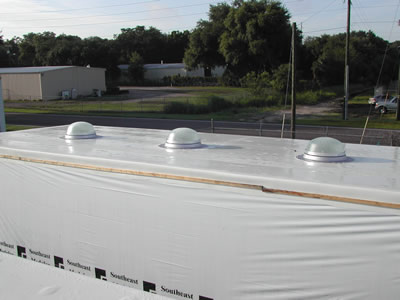

Skylights None (7) 21" dia. Solatube Skylights
Interior Floor Finish 26 oz. rolled carpet Non-permeable backing, Interface 'Sabi' carpet tile, low VOC glue
Heating System Bard Electric Resistance Heat 10kW heat strip, 35900 BTU heat Bard QTec Heat Pump, HSPF 7.5
Cooling System Bard Central Air Conditioning 3.5 ton with ERV,43000 BTU cool
Bard Qtec Central Heat Pump with ERV

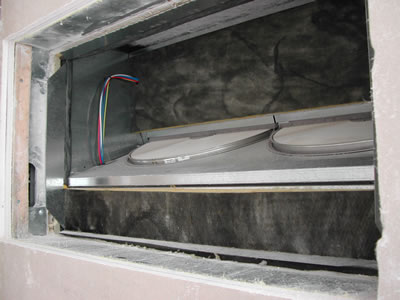

Ventilation System Fixed CFM during occupancy CO2 control for ventilation with 3-step fan speed and energy recovery ventilator (click here for more information regarding this ventilation control mechanism)

Bard CS200 Energy Monitor

Bathroom Exhaust Fan Broan, 4 sonne, 100 CFM Panasonic Whisperlite Fan, 1.3 sonne, 190 CFM
Duct Leakage* CFM25total Return = 318
CFM25total Supply = 485
CFM25out Return = 253
CFM25out Supply = 426
CFM25total Return = 325
CFM25total Supply = 420
CFM25out Return = 216
CFM25out Supply = 274
Building Leakage* ACH50 = 2673
ACH50 = 4850 (ACT removed)
ACH50 = 1107
ACH50 = 1139 (ACT removed)
Smoke test - Infiltration air handler unit on - 2.60 ach
Infiltration air handler unit off - 0.27 ach

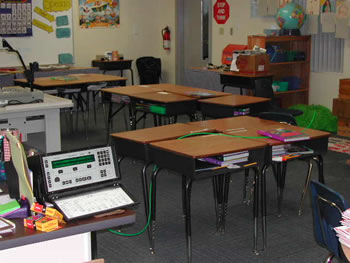

Infiltration air handler unit on - 0.66 ach Image
Infiltration air handler unit off - 0.05 ach Image

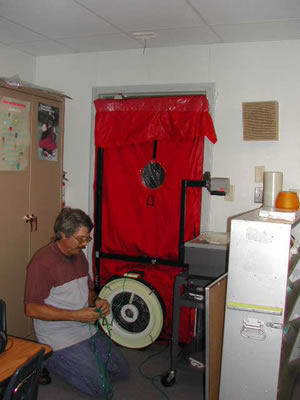

*Leakage Testing performed – December 9, 2003

Lessons Learned - Improvements Proposed for Next Construction
Characteristic Comment
Light Operation Learning from the NY PERC, we simplified the lighting controls when we specified the Solatube system. The Solatube also had a damper system but they were controlled with a simple manual timer, in the event that the teachers needed the skylights to “shut off”. When a dimmable ballast is specified with a a 3 tube fixture, Advance transformers make a Mark VII that is compatible with continuous dimmable ballast. Sensor switch also makes a photosensor, model #CM-ALC.

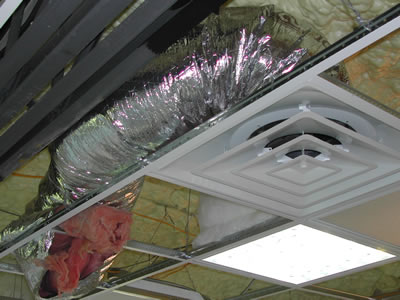

Skylight well Learning from the NY PERC, The FL PERC used the Solatube which included a tube that is standard with the skylight well, thus requiring no extra fabrication for a skylight well area. The Solatube is not insulated and batte insulation was wrapped around the tubes, post construction
Use R14 insulation in lieu of R15 because R15 is only
manufactured in 14" widths & 96" lengths, as apposed to R14, which come in rolls and 16" widths (which is more suitable for 16" on center construction, i.e wall cavity).

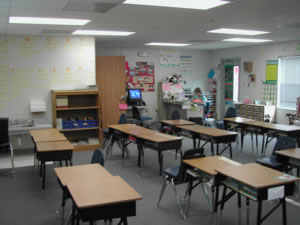

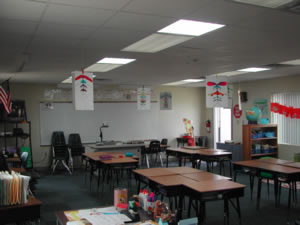

Picture of Skylight louvers open.
Picture of skylight louvers open but electric lights off.

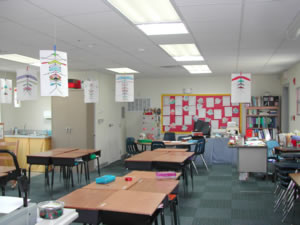

Skylight louvers open, electric lights on
Skylight louvers open, electric lights off

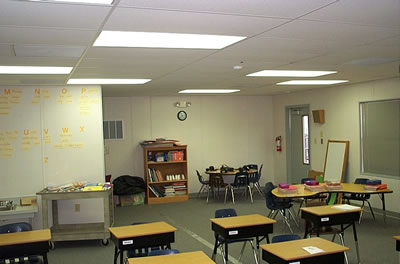

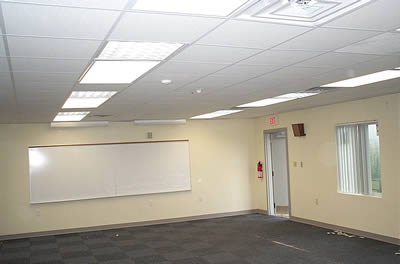

Picture of a controlled classroom with no skylights.
Picture of close up view of the skylight well parabolic diffuser.
Control classroom, no skylights
Close up view of the skylight
well parabolic diffuser

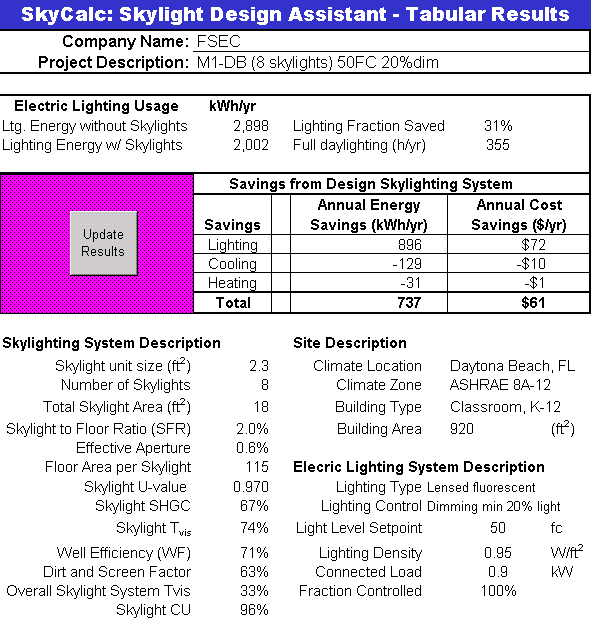

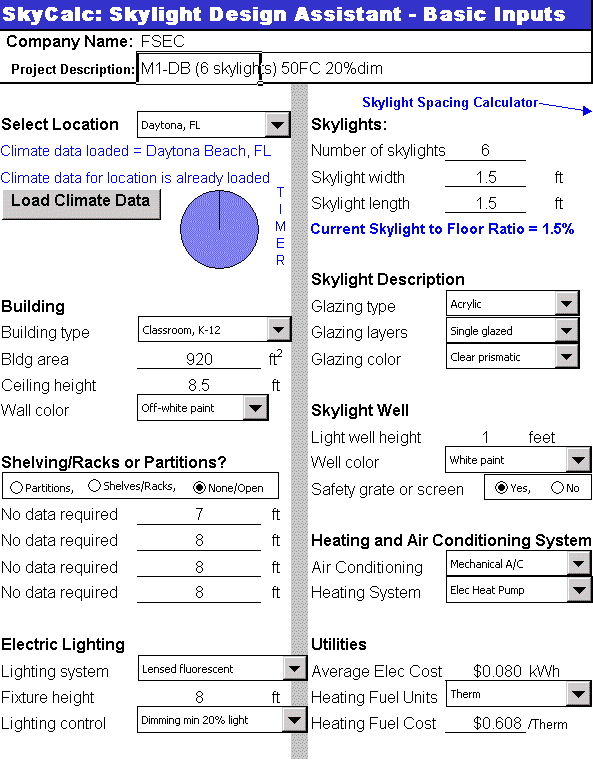

Optimizing the skylight to floor ratio was simulated to determine the size, layout and quantity of skylights that would optimize light levels in the classrooms. A program developed by Heschong Mahone Group, SkyCalc was utilized using various supplemental electrical lighting scenarios. The simulated results of using 5 skylights in NY climate with 3 step dimming lighting operation are shown below:

Picture of 4 Skylights.   Picture of 6 Skylights.   Picture of 8 Skylights.
4 skylights
6 skylights
8 skylights

As mentioned in Lessons Learned, the New York PERC lighting controls were never commissioned to operate automatically therefore savings would depend on the operators. The control classroom has the option of only using half the lights and data shows that the teachers in the control classrooms turned lights off when the classrooms were unoccupied and teachers in the PERC did not. It was resolved that commissioning of lighting controls would be a priority in future projects.

For construction status, future data collection, and specifications for other PERC's, please visit the links below.

Picture of NY PERC.
Picture of NC PERC.


FSEC would like to especially thank the industry partners who have donated time and equipment in this worthwhile project.

Company Contact Email Phone
ATEX Distributing John Michael 352-787-0002
Ellison Windows (Atrium) Chris Reilly   800-732-6543
Heschong Mahone Group Lisa Heschong 916-962-7001
Icynene Gabe Farkas
David Sullivan
local distributor/insulator
Interface Flooring Liz Rozelle 877-428-0328
Johns Manville Carlos Bolivar   305-205-6702
NASEO Frank Bishop 703-299-8800
Orange County Public Schools Doug Goddard 407-317-3700
Rebuild America - Energy Smarts Schools Larry Schoff 540-961-2184
Resun Leasing Al Schreier 407-240-6767
SensorSwitch Inc. Maurice Oliver 800-727-7483
Solatube Bob Westfall 760-597-4406
South East Modular Jim Ginas 352-728-2930

Project Lead:
Danny Parker
Principal Research Scientist
(321) 638-1404


Note of Interest: Roof
Icynene spray foam insulation is a spray-in-place soft foam that was applied to the roof deck of the FL PERC for purpose of lowering air infiltration. The insulation is made of polyicynene foam, a water-based organic product. This system provides an air and moisture barrier, wind proofs and seals the ceiling cavity and fills all crevices against air movement. It also reduces airborne sound.

Ventilation Method for FL PERC
Wall mounted CO2 Controller model # 8002 w/ display controls, modifies the ventilation fan speed to operate under these conditions (during occupancy):

  • high speed when CO2 levels in the classroom at 1200 ppm or more
  • off when CO2 levels in the classroom are at 550 ppm or less
  • medium speed when CO2 levels are between 700ppm –1200ppm

Bard CS2000 Energy Management controller detects occupancy and allows the heating/cooling/ventilation systems to operate when the classroom is occupied, and also has pre-cool/pre-heat scheduling
