Stylized Text: ZEH: Lakeland, Florida.

PV Project Thermography - PVRES Home (5/7/98)

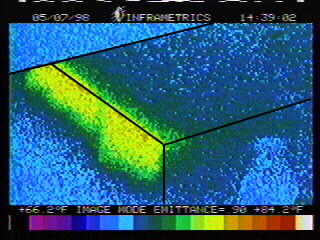

Uninsulated Kneewall

Even the PVRES house isn't perfect - during our investigation of the building envelope with the IR camera, we discovered some uninsulated kneewall in the foyer of the PVRES house. Compare this with the missing insulation we found in the foyer of the Control house.

The temperature range is from 66°F (darkest colors) to 84°F (lightest colors).

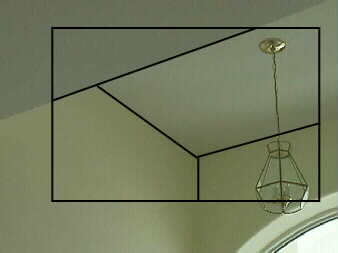

Figure 1a.
