PV Project Thermography - Control Home (5/7/98)

West Wall - Visible Top Plate

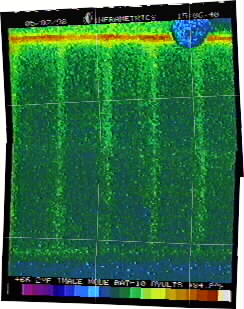

This IR photograph shows a visible top plate in the master bedroom. This photograph of the west-facing wall was taken at 3:06PM as the sun was shining directly on the exterior portion of the wall.

The temperature range is from 66°F (darkest colors) to 84°F (lightest colors).

Figure 1.
