Hydrogen is not an energy source, but is an energy vector or carrier. This means that it has to be produced from one of the primary energy sources: fossil fuels, nuclear, solar, wind, biomass, hydro, geothermal and urban waste resources. All the energy we use, including hydrogen, must be produced from one of these three primary energy resources.

On earth, hydrogen is found combined with other elements. For example, in water, hydrogen is combined with oxygen. In fossil fuels, it is combined with carbon as in petroleum, natural gas or coal. The challenge is to separate hydrogen from other naturally occurring compounds in an efficient and economic manner. See the "Hydrogen Production Paths" chart below for unique ways to produce hydrogen from the three sources.

There are several methods for producing or extracting hydrogen. Steam reforming is a well-established technology that allows hydrogen production from hydrocarbons and water. Steam-methane reformation currently produces about 95 percent of the hydrogen used in the United States.

Another conventional technique is electrolysis, which applies electrical current to decompose water into hydrogen and oxygen molecules. The electricity for electrolysis can come from any of the three energy sources.

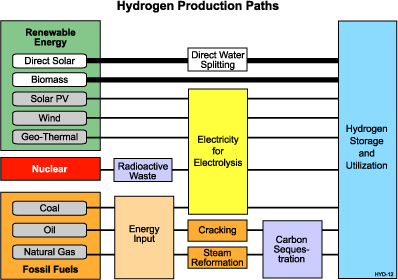

Chart displaying possible hydrogen production paths.

The cost of hydrogen production is an important issue. Hydrogen produced by steam reformation costs approximately three times the cost of natural gas per unit of energy produced. This means that if natural gas costs $6/million BTU, then hydrogen will be $18/million BTU. Also, producing hydrogen from electrolysis with electricity at 5 cents/kWh will cost $28/million BTU — slightly less than two times the cost of hydrogen from natural gas. Note that the cost of hydrogen production from electricity is a linear function of electricity costs, so electricity at 10 cents/kWh means that hydrogen will cost $56/million BTU.

A listing of the cost and performance characteristics of various hydrogen production processes is as follows:


Energy Required (kWh/Nm3)

Process
Ideal
Practical
Status of Tech.
Efficiency
[%]
Costs Relative
to SMR
Steam methane reforming (SMR)
0.78
2-2.5
mature
70-80
1
Methane/ NG pyrolysis
R&D to mature
72-54
0.9
H2S methane reforming
1.5
-
R&D
50
<1
Landfill gas dry reformation
R&D
47-58
~1
Partial oxidation of heavy oil
0.94
4.9
mature
70
1.8
Naphtha reforming
mature
Steam reforming of waste oil
R&D
75
<1
Coal gasification (TEXACO)
1.01
8.6
mature
60
1.4-2.6
Partial oxidation of coal
mature
55
Steam-iron process
R&D
46
1.9
Chloralkali electrolysis
mature
by-product
Grid electrolysis of water
3.54
4.9
R&D
27
3-10
Solar & PV-electrolysis of water
R&D to mature
10
>3
High-temp. electrolysis of water
R&D
48
2.2
Thermochemical water splitting
early R&D
35-45
6
Biomass gasification
R&D
45-50
2.0-2.4
Photobiological
early R&D
<1
Photolysis of water
early R&D
<10
Photoelectrochemical decomp. of water
early R&D
Photocatalytic decomp. of water
early R&D

This table was originally published in IEEE Power & Energy, Vol. 2, No. 6, Nov-Dec, 2004, page 43, "Hydrogen: Automotive Fuel of the Future," by FSEC's Ali T-Raissi and David Block.
